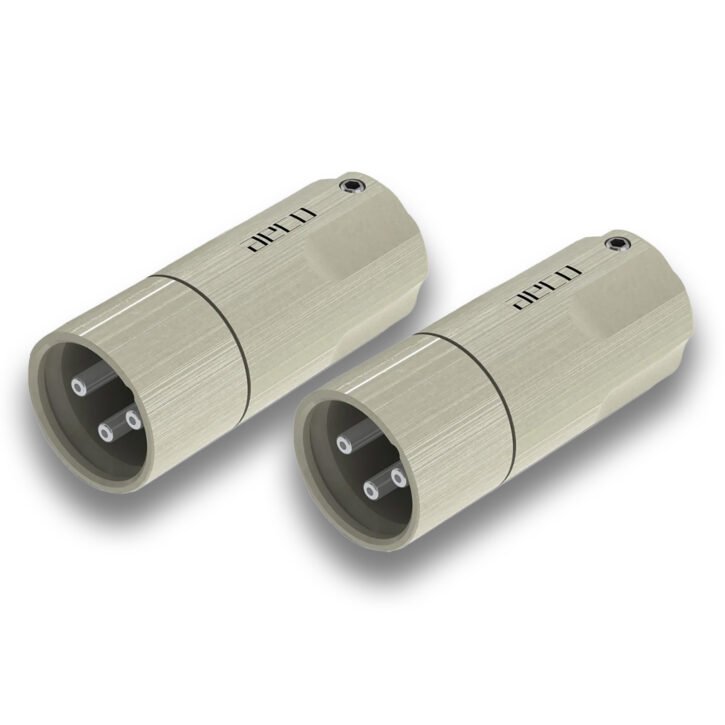

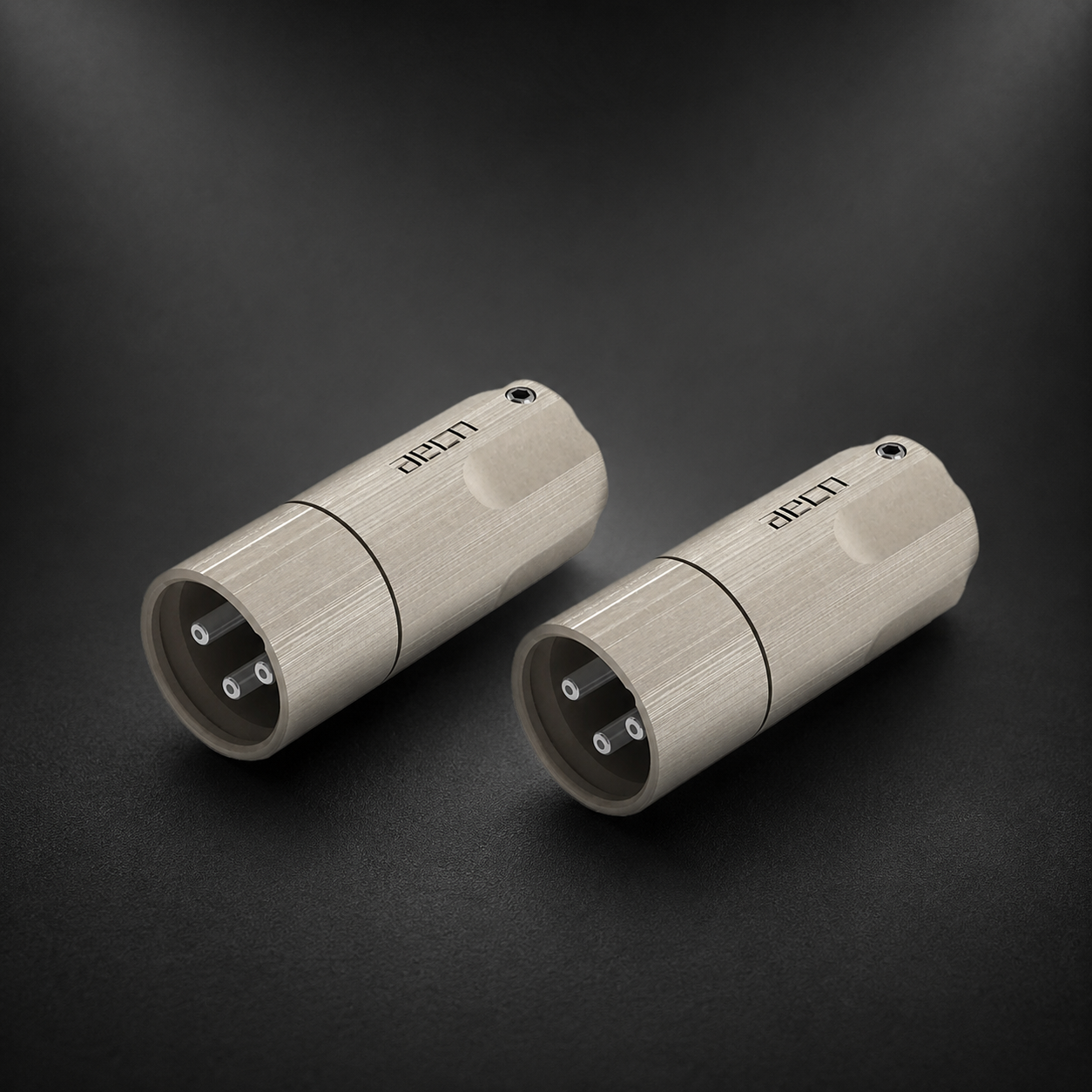

Pair Of AECO XLR Connectors AMI-1060S Silver Plated Copper Contacts

Description

Solid copper contacts in both male and female XLR connectors are rare, only a few manufacturers in the world are making them. These connectors from AECO contain machined Tellurium Copper contacts with high quality silver plating.
Two cable entry diameters are achieved with a removable plastic insert, fine adjustment can be further made for a good fit with the use of heatshrink.

Entry diameter 8.5mm, without sleeve is 12.5mm with sleeve

There is no latching mechanism on the female but these are a very nice fit in any other manufacturer you can think of thanks to the accuracy of the production.

Sold in pairs (1 female & 1 male)

Material：
Contact pin:
Male – Tellurium copper (#C14500 / copper contains over 99%).
Female – Tellurium copper (#C14500 / copper contains over 99%).

Ground pin:
Male – Brass alloy (#C3604).
Female – Tellurium copper (#C14500 / copper contains over 99%).

Insulator: PTFE
Body:Brass alloy (#C3604).
Shell: Brass alloy (#C3604).
Sleeve: POM .
Screw: Iron.

Finish：
AMI-1060G
Contact pin: 10u” Gold plating (no nickel base).
Shell ground pin:10u” Gold plating (no nickel base).
Body:
Male – Satin Nickel + Topcoat.
Female – 10u” Gold plating (no nickel base).

AMI-1060S
Contact pin: 120u” Silver plating (no nickel base).
Shell ground pin: 120u” Silver plating (no nickel base).
Body:
Male – Satin Nickel + Topcoat.
Female –  120u” Silver plating (no nickel base).

Insulator: None.
Shell: Satin Nickel + Topcoat.
Plastic Steel: None.
Screw: Nickel plating.

​
Electrical Characteristics：
Contact resistance < 1.0 mOhm (It was test by Ami-1060.)

Dimension：
Biggest OD:18.9mm
Total Length:
Male: 46.0mm
Female: 59.5mm

Package：
Vacuum Bag(1 male & 1 Female/1Set)

​
​Recommend soldering temperature:
Temperature Soldering Iron, please keep 400 degree within 10 second
Temperature Soldering Iron, please keep 450 degree within 05 second
​

Product production process comply with RoHS
