Description

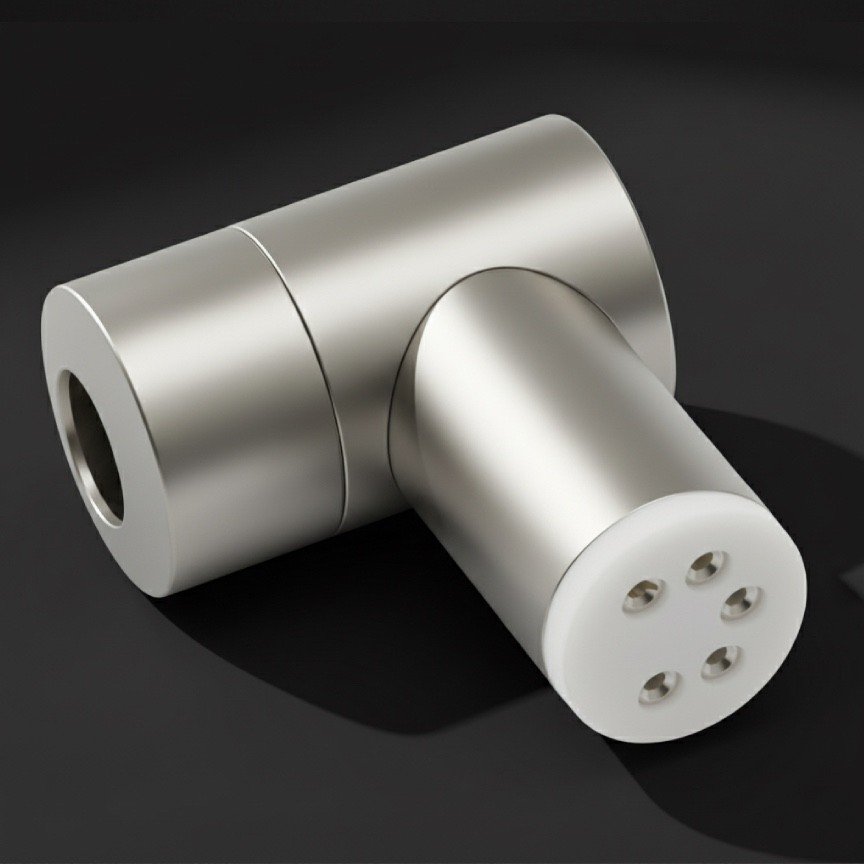

A premium right-angle 5-pin DIN connector designed for high-end tonearm cables. Features silver-plated contacts for optimum signal transfer, low resistance, and long-term reliability. The precision-machined body ensures perfect fitment with industry-standard tonearms.

This is one of the lowest profile tonearm dins I have seen with the height at just 32mm.

These are the same design as used on some expensive branded cables, very easy to work with, just one screw. The cable entry can accept cables up to 8mm in diameter, there is a plastic chuck style grip for narrower cables. The design incorporates a small over-shoot beyond the bend which makes threading cable around the bend much easier than other connectors.

Supplied with insulating insert and secure solder bucket terminations, allowing clean and durable assembly for audiophile-grade tonearm interconnects.

• 5-pin right-angle DIN format (tonearm standard)
• Silver-plated contacts for enhanced conductivity
• Robust machined shell, non-magnetic body

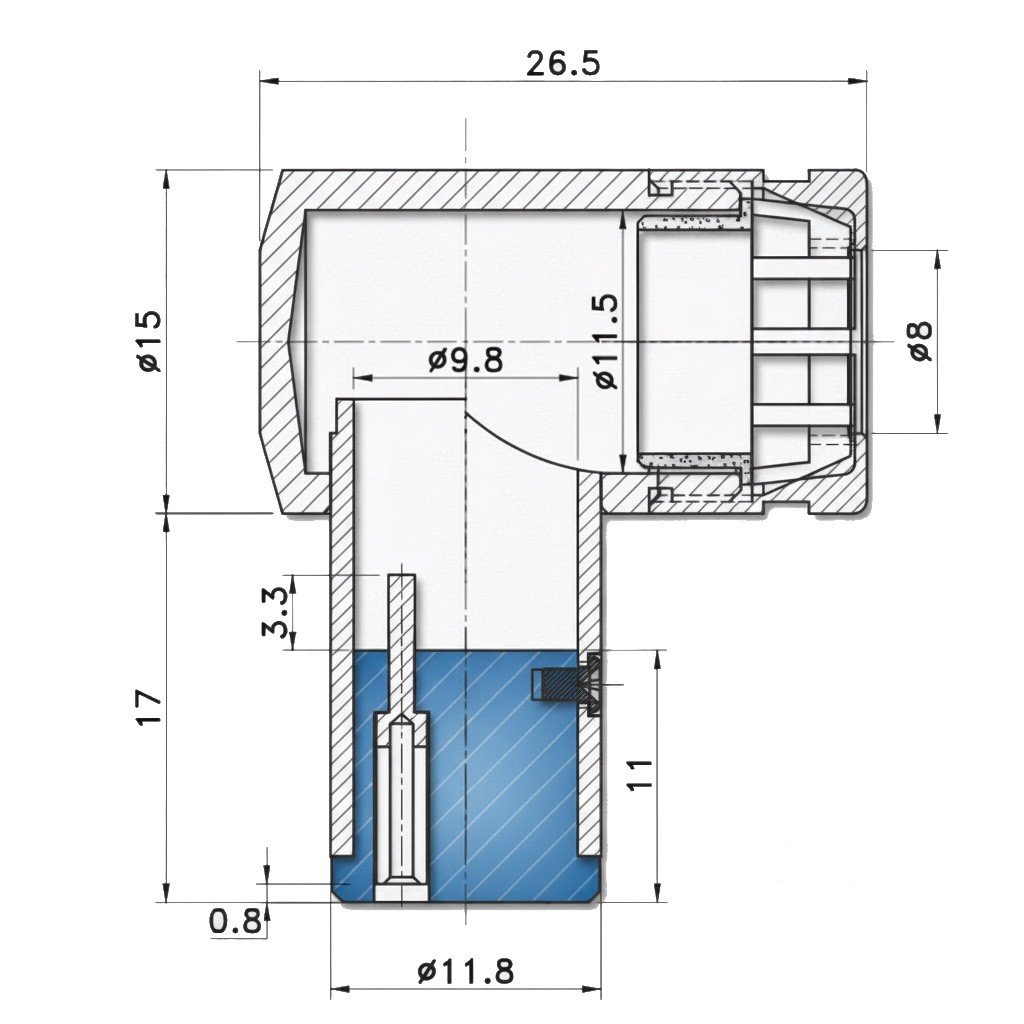

• Dimensions:  (see drawing)
• Easy solder termination with secure contact buckets
