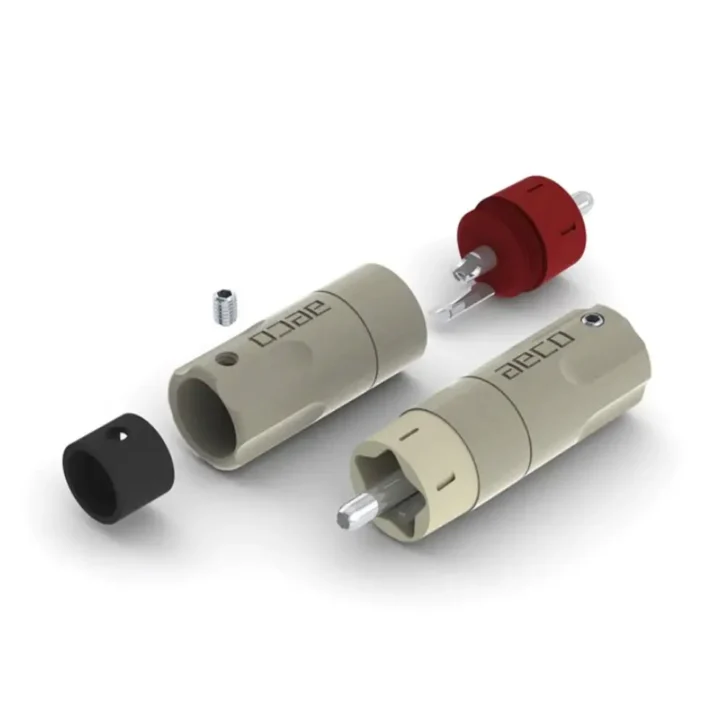

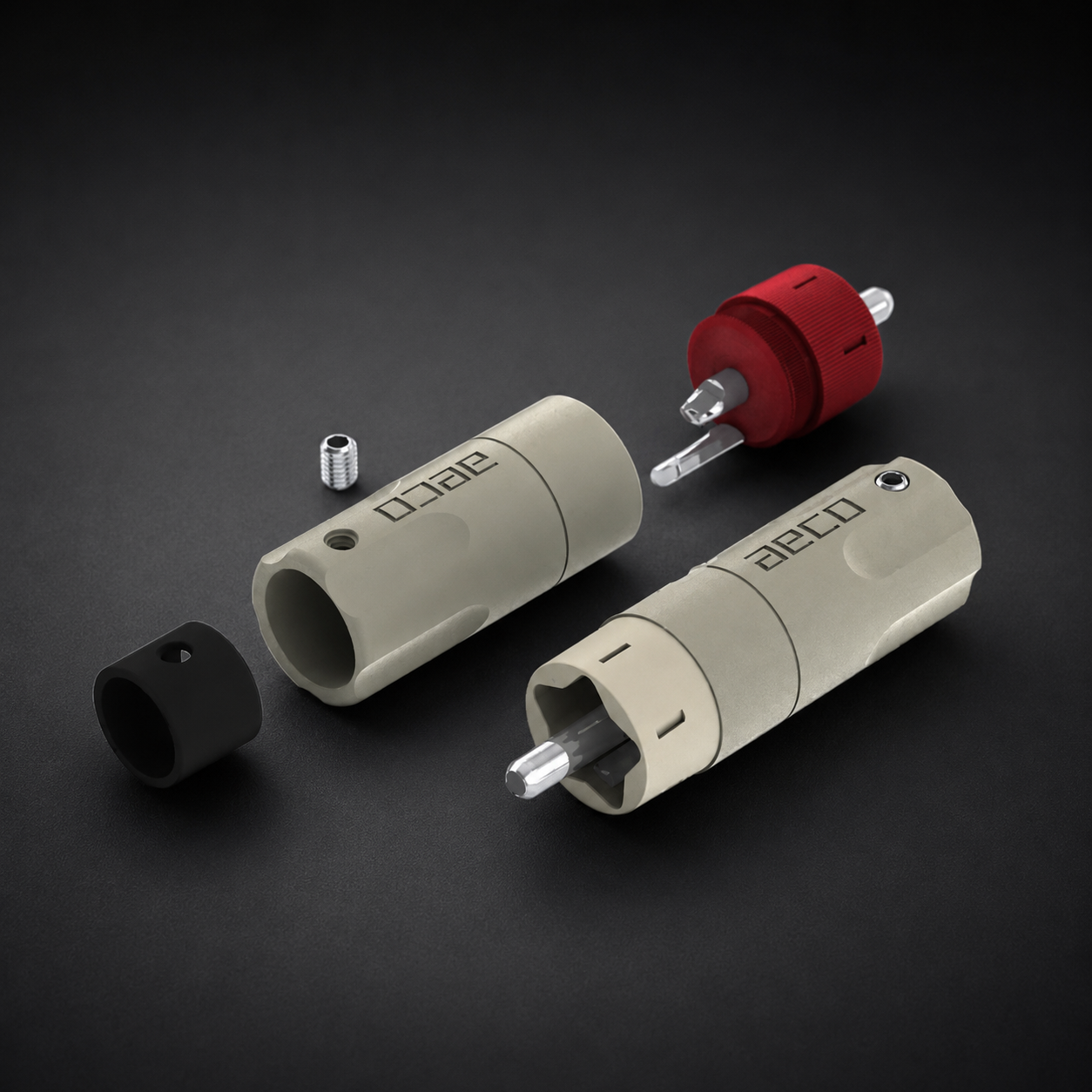

Silver Plated Tellurium Copper RCA Connector aeco ARP-4045S 1 x set of 4

Description

We are pleased to be able to offer this new exciting range of high-end connector from aeco. With a Silver Plated Tellurium Copper central pin & ground contacts, unique chuck design and beautifully machined back shell these are a serious rival to any brand on the market. They are provided with reducing sleeves and two different lengths of grub screws so achieving a snug fit & good strain relief is made easy.

ARP-4045s
Material:
Contact Pin: Tellurium Copper (#C14500 / copper contains over 99%)
Grounding: Copper (#C1100 / copper contains over 99.5%)
Body: Glass fiber reinforced nylon (Red / White)
Shell: Brass alloy (#C3604)
Sleeve: POM
Screw: Iron

Dimension：
Biggest OD 13.7mm
Cable hole
Sleeve is contained with finished product 8.5mm
Sleeve is not contained Sleeve is not contained 10.5mm
Total Length 43.7mm

Packing:
Vacuum Bag(4Pcs/1Set)

Product production process comply with RoHS
Product made new TW patent No. D158416
Cable hole:With reducer sleeve 8.5mm, without reducer sleeve 10.5mm

Total Length: 43.7mm
Packing: Vacuum Bag(4Pcs/1Set)
