1 Pair Of ABC-1471 New BNC 75 Ohm Connector From AECO

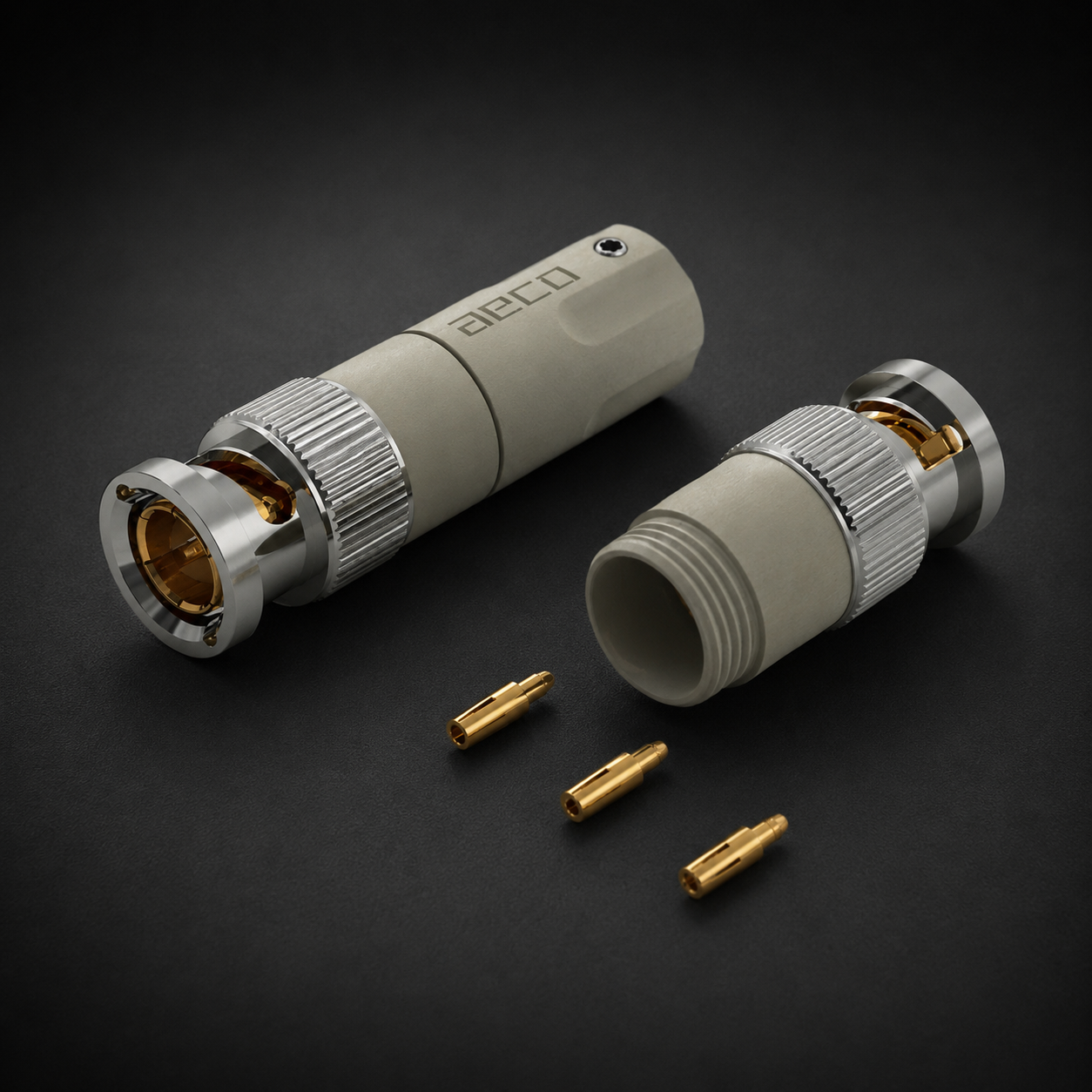

These are the new BNC connectors from AECO, re-designed and engineered. As with all the AECO range these are beautifully machined with Tellurium copper contacts. The following is supplied from the AECO website.
Concept
Provide much selection of the cable type
In order to achieve the best transmission effect (VSWR approaches 1) in RF fields, we will concentrate the specifications for the correspondence between connectors and cables.
For example, the Japan specification (4C, 5C) or US specification (RG-59, RG-6U) and other specification and impedance, You must choose the same specification and impedance for the connectors and cables.
The definition of the specifications is to maintain a regular percentage of the section conductor and insulation diameter ratio connection after assembly.
In case of the unclear specification of the cable, it will cause there no corresponding connector.
Under these circumstances, ABC-14 will be proposed a solution on it.
In a specified size range for the cables, it will allow cables to maintain a regular percentage of the section conductor and insulation diameter ratio after complete assembly and also achieve the best transmission effect.
It’s allow to connect conductor by solder or crimp
The method of main contact pin to suit several secondary contact pin;
Not only to extend the compatibility, also increase the suitable ability of cable and connectors.
Secondary contact pin’s cross cutting and shrink design.Which is able to choose the solder or crimp method to connect the contact cable conductor with contact pin of the connector.
The conduct material is made by high pure copper (Tellurium copper) and plated without nickel base.
Focus provide the client who has requirement of Hi-End by highest quality design and material.
In order to achieve the best transmission effect (VSWR approaches 1) in RF fields, we will concentrate the specifications for the correspondence between connectors and cables.
For example, the Japan specification (4C, 5C) or US specification (RG-59, RG-6U) and other specification and impedance, You must choose the same specification and impedance for the connectors and cables.
The definition of the specifications is to maintain a regular percentage of the section conductor and insulation diameter ratio connection after assembly.
In case of the unclear specification of the cable, it will cause there no corresponding connector.
Under these circumstances, ABC-14 will be proposed a solution on it.
In a specified size range for the cables, it will allow cables to maintain a regular percentage of the section conductor and insulation diameter ratio after complete assembly and also achieve the best transmission effect.
It’s allow to connect conductor by solder or crimp
The method of main contact pin to suit several secondary contact pin;
Not only to extend the compatibility, also increase the suitable ability of cable and connectors.
Secondary contact pin’s cross cutting and shrink design.Which is able to choose the solder or crimp method to connect the contact cable conductor with contact pin of the connector.
The conduct material is made by high pure copper (Tellurium copper) and plated without nickel base.
Focus provide the client who has requirement of Hi-End by highest quality design and material.
Description

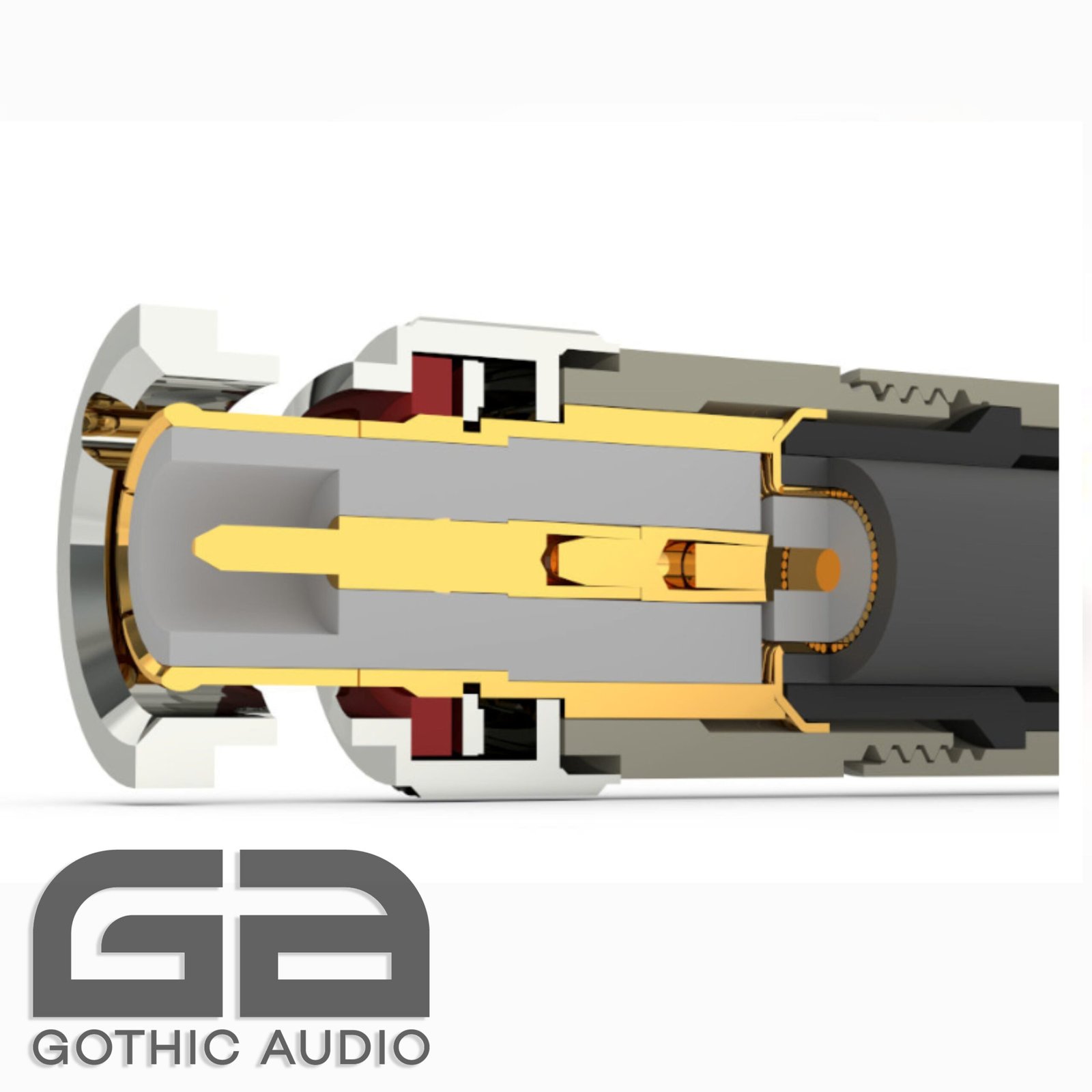

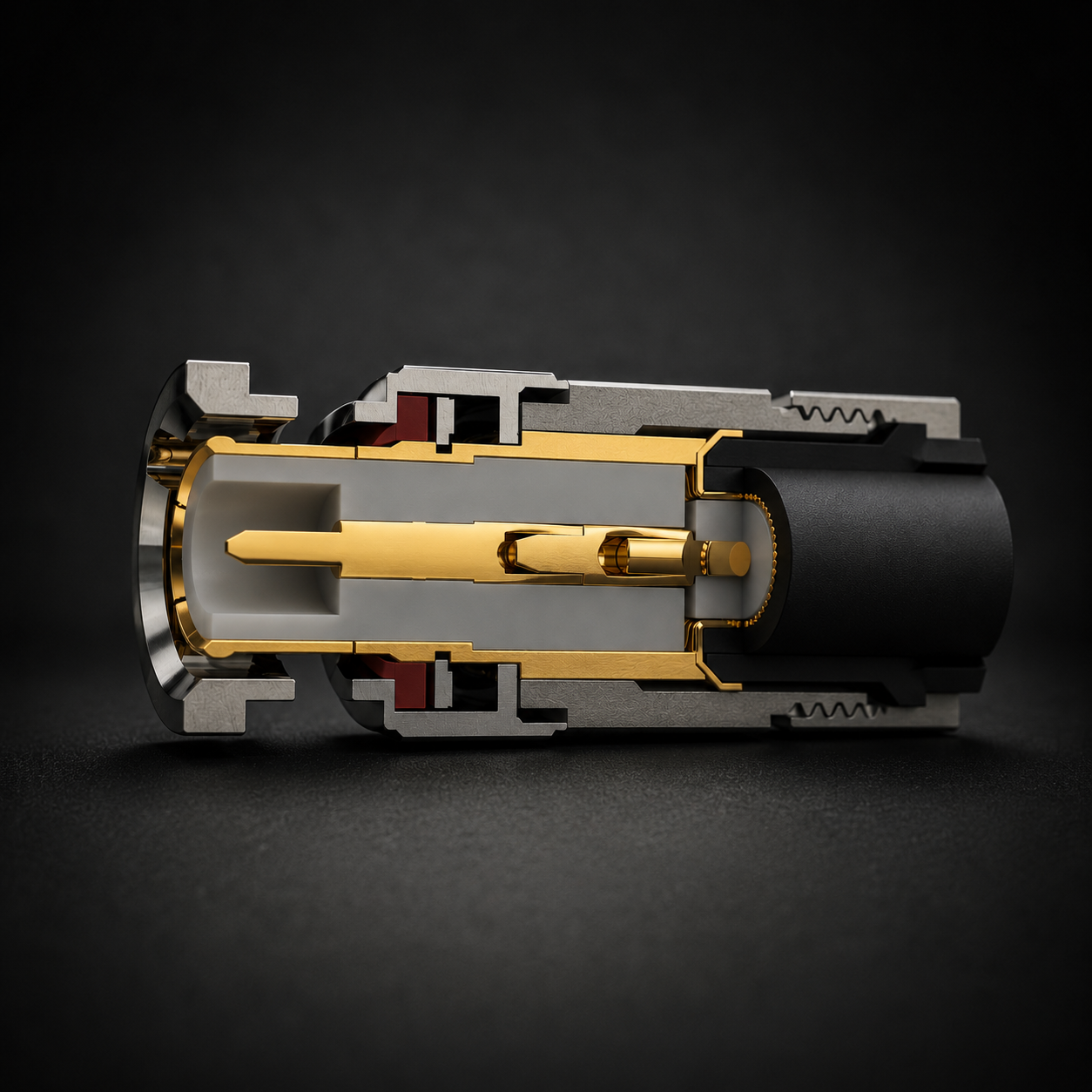

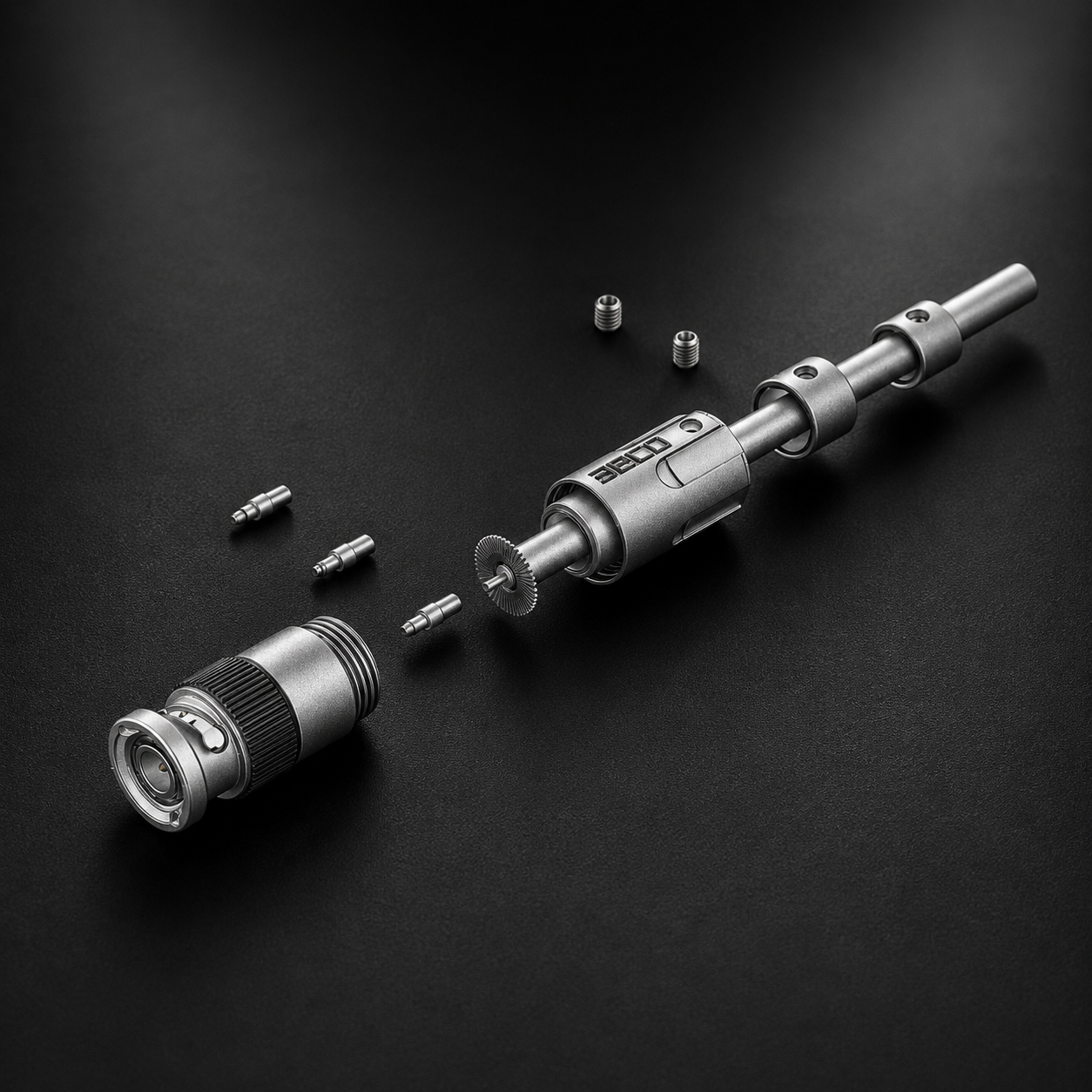

Mechanical structure:
Main contact pin uses the barb hook into the insulation while assemble.
Main contact pin uses the barb hook into the insulation while assemble.
Secondary contact pin fixed with main contact pin while assemble cables by crimp method.
The body and the insulation will used the barb hook to assemble tighten,
and fix middle piece shell with punch riveting.
The front shell rivet on the body by spring and washer and it can spin independently
The end part and middle part of the shell locked by screwing,
and fix with the cable and the sleeve stable by a screw.
Note:
The second contact pin (ID 1.3/0.9/0.5 MM 2 pcs each)
and screw (3/4MM 2 pcs each) which is for locking cable
all including in the pack
Assemble:
1.Peel cable
1.1.the cable OD < 7.5mm:
Step01
Place shell’s back part<301> in the cable, and removed the sleeve<311/312> depends on the actual cable OD size.
Step02
Peel the shields about 6.0 mm.
Step03
Move out the cable braid and dielectric(X-2)mm, X is the cable OD which include the braids.
Step04
To comb the braids by radial direction, and spread it out with core in vertical direction. And the spread out Round diameter is about 12.0mm. Move out the aluminum foil and dielectric along the braids spread area.
Step05
Make sure the cable core is exposed 3.0mm than braids spread area.
1.Peel cable
1.1.the cable OD < 7.5mm:
Step01
Place shell’s back part<301> in the cable, and removed the sleeve<311/312> depends on the actual cable OD size.
Step02
Peel the shields about 6.0 mm.
Step03
Move out the cable braid and dielectric(X-2)mm, X is the cable OD which include the braids.
Step04
To comb the braids by radial direction, and spread it out with core in vertical direction. And the spread out Round diameter is about 12.0mm. Move out the aluminum foil and dielectric along the braids spread area.
Step05
Make sure the cable core is exposed 3.0mm than braids spread area.
1.2.the cable OD >7.5mm but <10.5mm:
Step01
Peel the shields about 20.0 mm
Step02
Move out the cable braid and dielectric(X-2)mm, X is the cable OD which include the braids.
Step03
Place shell’s back part<301> in the cable, and removed the sleeve<311/312> depends on the actual cable OD size.
Step04
To comb the braids by radial direction, and spread it out with core in vertical direction. And the spread out Round diameter is about 12.0mm. Move out the aluminum foil and dielectric along the braids spread area
Step05
Make sure the cable core is exposed 3.0mm than braids spread area.
AECO ABC-1471 75 Ohm Gold Plat...
Original price was: £80.00.£65.00Current price is: £65.00.
