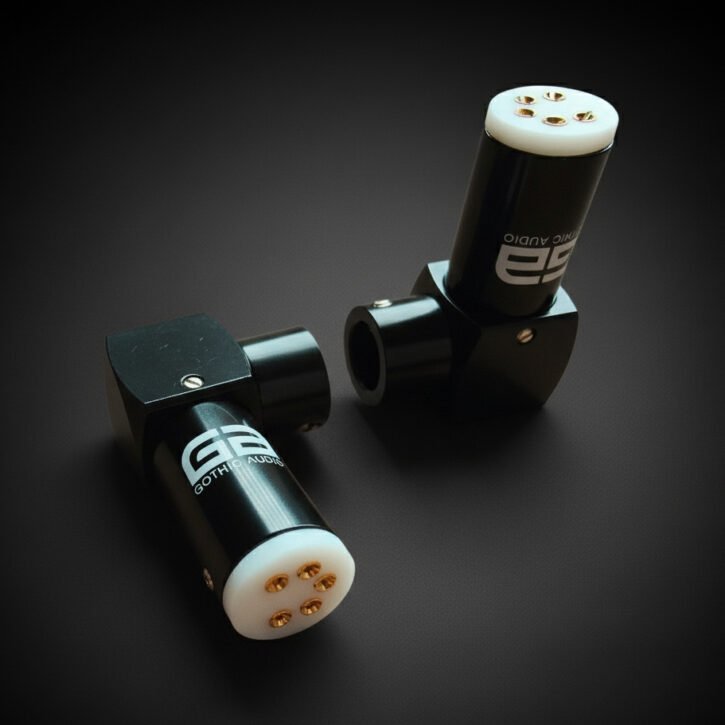

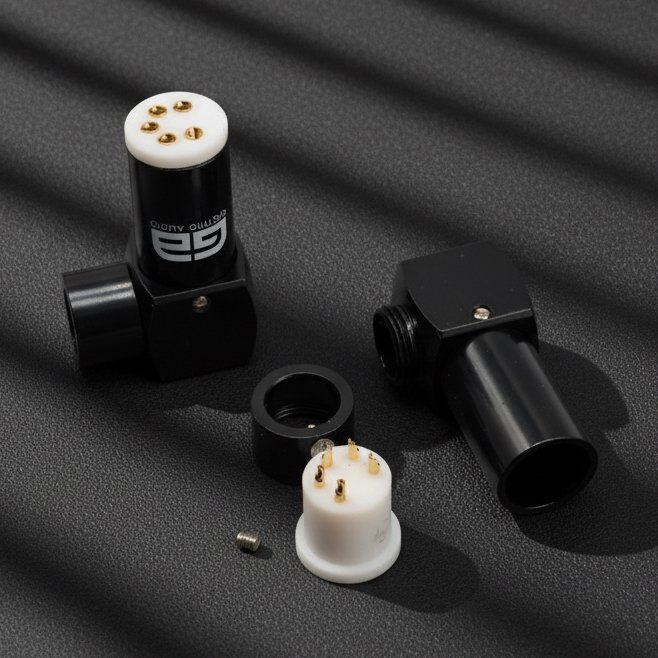

Right Angled Tonearm Din Connector Tellurium Copper Contacts
0 out of 5
£20.00
Right-Angled 5-Pin Tonearm DIN Connector with tellurium copper contacts for ultra-low resistance and excellent mechanical strength.
Designed for tonearms using the standard 5-pin 240° DIN socket. Compact 90° body keeps the cable low-profile behind the arm pillar.
Designed for tonearms using the standard 5-pin 240° DIN socket. Compact 90° body keeps the cable low-profile behind the arm pillar.
- Contacts: tellurium copper (high conductivity, robust wear resistance)
- Orientation: right-angled (90°) for tight installs & tidy cable dressing
- Insulation: high-grade dielectric for stable contact geometry
- Termination: solder cups for L/R, grounds & chassis/arm earth
- Fits most 5-pin 240° tonearm sockets (SME, Jelco, Ortofon, many others)
- Connector only (no cable). Built for premium DIY phono leads
Category: CONNECTORS
Tag: GOTHIC
- Description
- Reviews (0)
Description
A compact, right-angled 5-pin 240° tonearm DIN connector built around
tellurium copper contacts for the cleanest possible signal from your cartridge to phono stage.
Why Tellurium Copper?
Tellurium copper delivers very high conductivity with far better mechanical strength than pure copper.
That means low contact resistance, crisp transients, and reliable long-term clamping without softening or deformation.
Right-Angle, Tidy Installs
The 90° body keeps the cable close to the arm base, improving clearance on tight racks and
reducing stress on delicate tonearm wiring. Ideal where a straight plug would protrude too far.
Built for Premium DIY
Solder-cup terminations make it straightforward to attach L/R hot, L/R return and chassis/arm earth.
Optimised for low-capacitance tonearm leads and high-purity conductors.
Specifications
Standard | 5-pin DIN, 240° tonearm format (male) |
---|---|
Orientation | Right-angled (90°) |
Contacts | Tellurium copper pins |
Insulator | High-grade dielectric spacer |
Termination | Solder cups: L+, L-(return), R+, R-(return), chassis/arm earth |
Cable Support | Strain-relief tail/boot; suits common tonearm cable diameters |
Use Case | DIY/upgrade tonearm leads from cartridge to phono stage (phono-level signals) |
Compatibility
Fits tonearms that use the standard 5-pin 240° DIN socket at the arm base, including many models by SME, Jelco, Ortofon, Audiomods and others.
- Check clearance behind the arm pillar for a right-angled plug.
- Not for DIN variants other than 5-pin 240° (e.g., 5-pin 180°).
Build & Solder Notes
- Slide any boot/strain relief and heatshrink onto the cable first.
- Pre-tin the solder cups and your conductors with a fine electronics soldering iron.
- Wire order: L+, L-(return), R+, R-(return), chassis/arm earth per your chosen pinout.
- Keep leads short, avoid excess heat; allow each joint to cool fully.
- Fit the boot/strain relief and verify secure clamping before final assembly.
In the box: 1 × right-angled 5-pin tonearm DIN connector (connector only). No cable included.
FAQ & Support
Unsure about clearance or pinout? Message us and we’ll advise. We build custom tonearm cables in-house if you’d prefer a finished lead.
Returns: For standard parts you can return within 30 days for refund.
For sealed connectors the products must be unused and unopened.
If anything arrives damaged or faulty, please message us and we’ll make it right.
For sealed connectors the products must be unused and unopened.
If anything arrives damaged or faulty, please message us and we’ll make it right.
